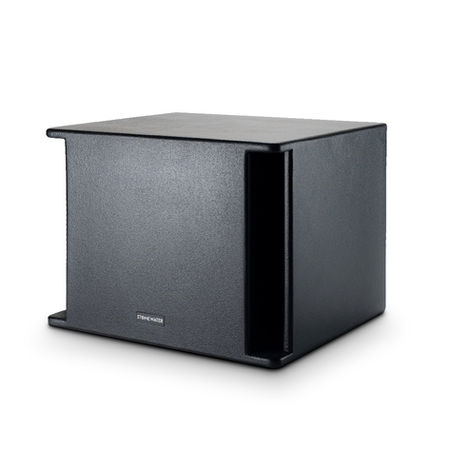

MicroSub12BP

12" HIGH SPL SUBWOOFER

Compact Size High SPL and precisely defined bass –

this sums up the performance of the Microsub 12.

Its High Excursion 12inch driver employs a high temperature 3in copper voice coil to give you ample power handling.

The high efficiency Band-Pass design ensures high acoustic output despite its compact dimensions

APPLICATION

Provides low extension to

Micro 6, Aqua 6, Aqua 8 speakers

Nominal Driver Size

Rated Power Handling (AES)

Continuous Program Power

Peak Power

Frequency Response (-3db)

Sensitivity

Impedance

Dimensions (mm)

Net Weight

: 1x12”(300mm)/3” Copper Voice coil

: 500 W

: 1000 W

: 2000 W

: 45 Hz - 200 Hz

: 96Db 1W/1M

: 8 Ω Nominal

: 512 (W) X 373 (H) X 430 (D)

: 24.6 Kg
