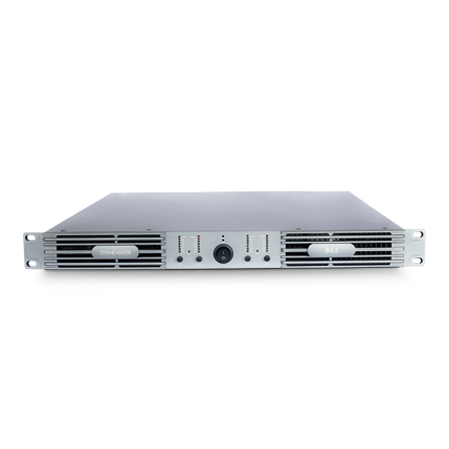

B4.3

Rated Power(Stereo8Ω) Rated Power(Stereo4Ω) Rated Power(Bridge 8Ω) Frequency Response Damping Factor

Slew Rate

Input Sensitivity

THD+N

SNR

Input Impedance

Power Supply Required Voltage Range

Input Connector

Output Connector Product Dimensions(mm) Net Weight Protection

: 4 x 2000W

: 4 x 3650W

: 2 x 7300W

: 20Hz-20KHz, +/-0.5dB

: ＞3000 : 30V/μs

: 0.775V,1.1V and 1.4V optional

: ＜0.08%

: ≥99dB (A-Weighted)

: 20k Ω Balance/ 10k Ω Unbalance

: AC 200-240V ~50-60HZ

: AC 160-260V~50-60HZ

: Male & Female XLR

: Speakon : 486 (W) x 88 (H) x 205 (D)

: 9 Kg

: Protection against Overload,DC, Overheat, Short Circuit, distortion limit and sub-low frequency, and EM RF Interference Filter
